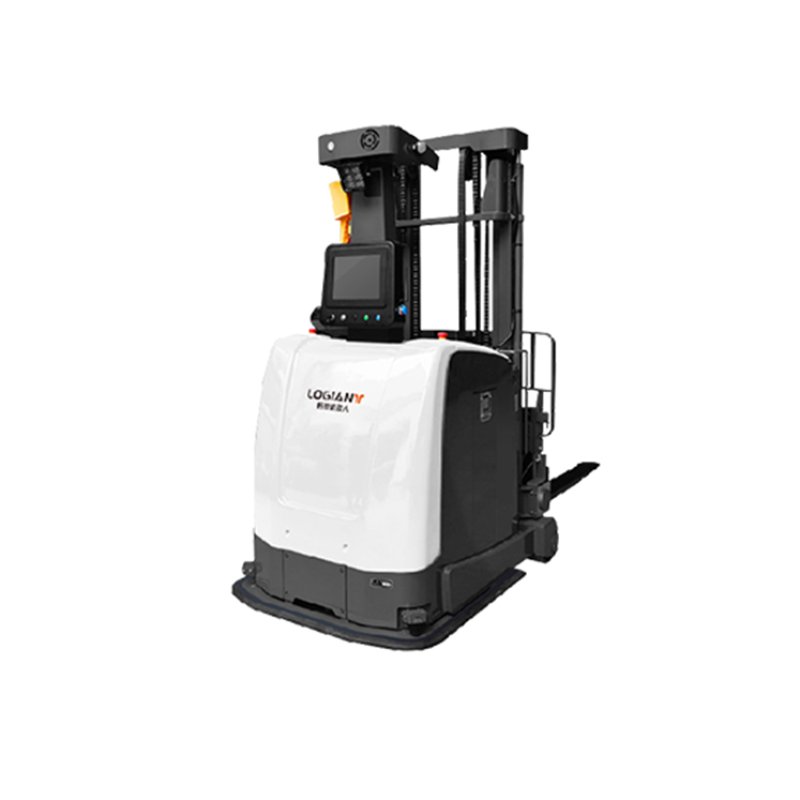

FB series Forklift counterbalance AMR

LOGIANT

LCS Solution

Product Model:ANR-FB15、ANR-FB20

Handle pallet from ground/conveyor/rack.

Used for single face & double face pallet/carrier.

Max. payload: 3T

Lidar SLAM navigation

Seven safety protection

Handle pallet from ground/coveyor/rack.

Used for single face & double face pallet/carrier.

Max. payload: 3T

Lidar SLAM navigation

Seven safety protection

Product Specifications

Model	ANR-FB15	ANR-FB20
AGV Size(mm)	242712092045	287712092045
Lift height(mm)	3000	3000
Safety performance	Anti-collision lidar x3、Around bumper strip	Anti-collision lidar x3、Around bumper strip
AGV weight(kg)	2700（including battery）	3220（including battery）
Rated Load(kg)	1500	2000
Navigation type	Lidar SLAM	Lidar SLAM
Load center distance(mm)	500	500
Fork outer width(mm)	460/560/680	460/560/680
Min. turning radius (mm)	1342	1730
Max traveling speed(m/s)	1.0	1.0
Positioning accuracy(mm)	±10	±10
Motion mode	Forward/Backward	Forward/Backward
*Aisle width (mm)	2800	3250
Battery type	Lithium battery	Lithiuim battery
Battery volume	24V 230Ah	24V 230Ah
