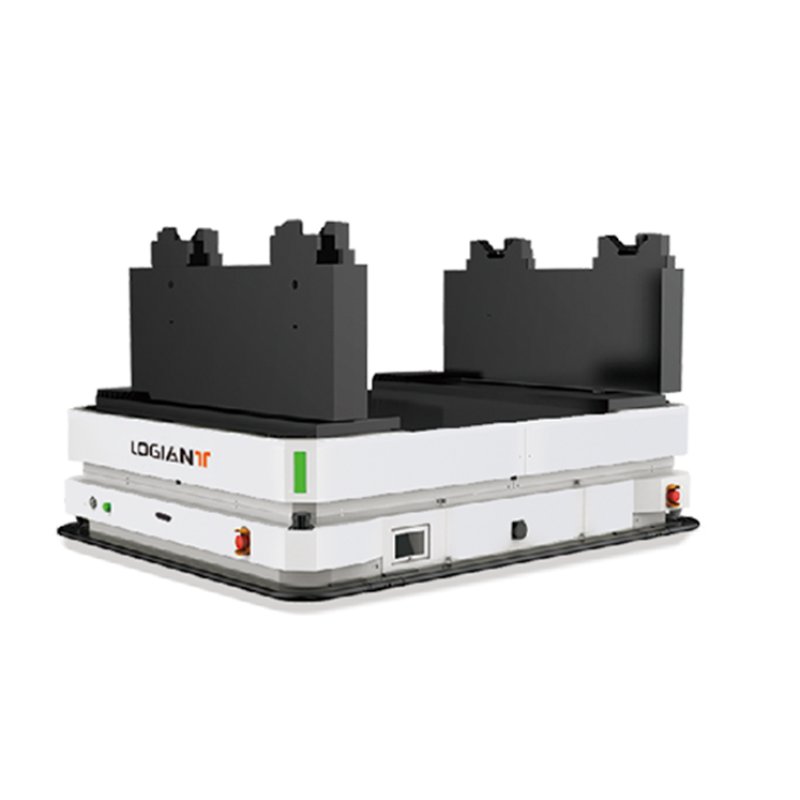

ANR-HD SERIES HEAVYDUTY

LOGIANT

LCS Solution

Product Model: ANR HD10、ANR HD20

Forward/backwards/sideways/spin in place

Especially suitable for narrow channel handling operations

Standard chassis, customizable design

Laser SLAM/ QR Code navigation/Composite navigation

360-degree security protection

Forward/backwards/sideways/spin in place

Especially suitable for narrow channel handling operations

Standard chassis, customizable design

Laser SLAM/ QR Code navigation/Composite navigation

360-degree security protection

Product Specifications

Model	ANR-HD10	ANR-HD20
Payload (kg)	1000	2000
Navigation type	Laser SLAM
AGV dimension (mm)	170015001520	200017001520
Weight kg	1200	1500
Jacking height (mm)	200~900（可选）
Jacking time (s)	2196	2554
Rotation diameter (mm)	Standard
Max. climbing ability (°)	3
Max. acceleration (m/s2)	0.5
Travelling speed (m/s)	1.2
Positioning accuracy (mm)	±10
Angular accuracy (°)	±1
Laser obstacle avoidance	safety laser ×1
Bumper strip	Front/rear C-shaped bumper strip
Audible alarm	Standard
Emergency stop button	Standard (X4)
Battery type	lithium iron phosphate
Battery volume (Ah/V)	36Ah/48V	66Ah/48V
Charging time (H)	2
Endurance time (H)	8
Charging type	Manual/Automatic
Charge/discharge cycle	2000times（15% attenuation）
Control type	Manual/Automatic
