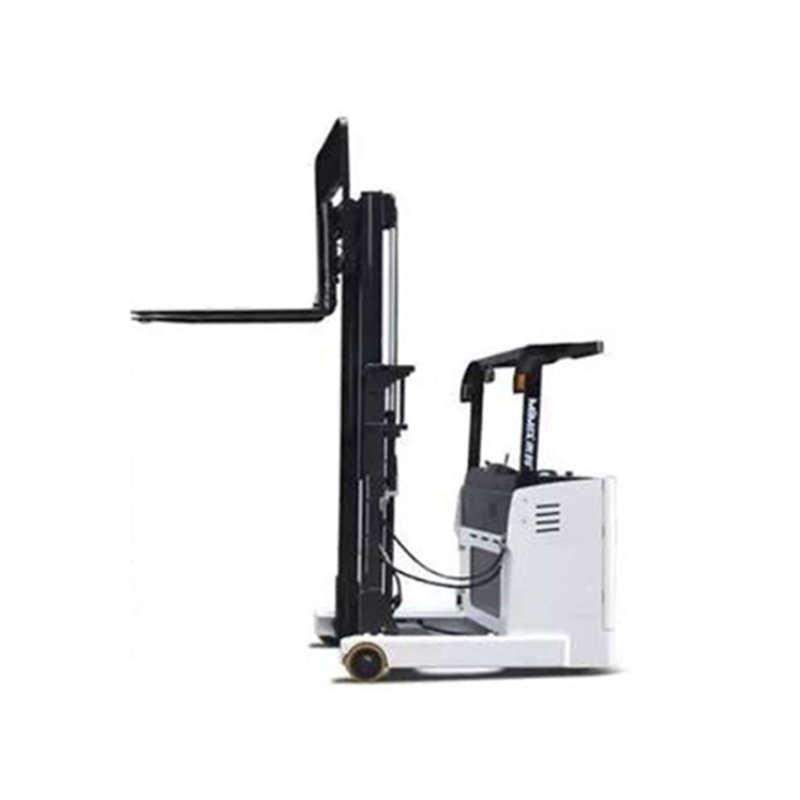

FR series Forklift reach AMR

LOGIANT

LCS Solution

Product Model: ANR-FR16、ANR-FR20

Handle pallet from ground/conveyor/rack.

Used for single face & double face pallet/carrier.

Max. payload: 3T

Max. lift height: 9m

Lidar SLAM navigation

Seven safety protection

Handle pallet from ground/conveyor/rack.

Used for single face & double face pallet/carrier.

Max. payload: 3T

Max. lift height: 9m

Lidar SLAM navigation

Seven safety protection

Product Specifications

Model	ANR-FR16	ANR-FR20
AGV Size(mm)	234012903250	298515502300
Lift height(mm)	3000/7500（3 stage gantry）	3000/7500（3 stage gantry）
Safety performance	Anti-collision lidar x3、Around bumper strip
AGV weight(kg)	3710	4000（including battery）
Rated Load(kg)	1600	2000
Navigation type	Lidar SLAM
Max traveling speed(m/s)	8.5/10	8.5/10
Load center distance(mm)	500	500
Fork dimension(mm)	107010035	107012240
Fork outer width(mm)	222-750	222-772
Positioning accuracy(mm)	±10	±10
Motion mode	Forward/Backward
Min. turning radius (mm)	1700	1798
Battery type	Lithium battery
Battery volume	48V/300Ah	48V/560Ah
Min. aisle width (mm)	2814	2882
