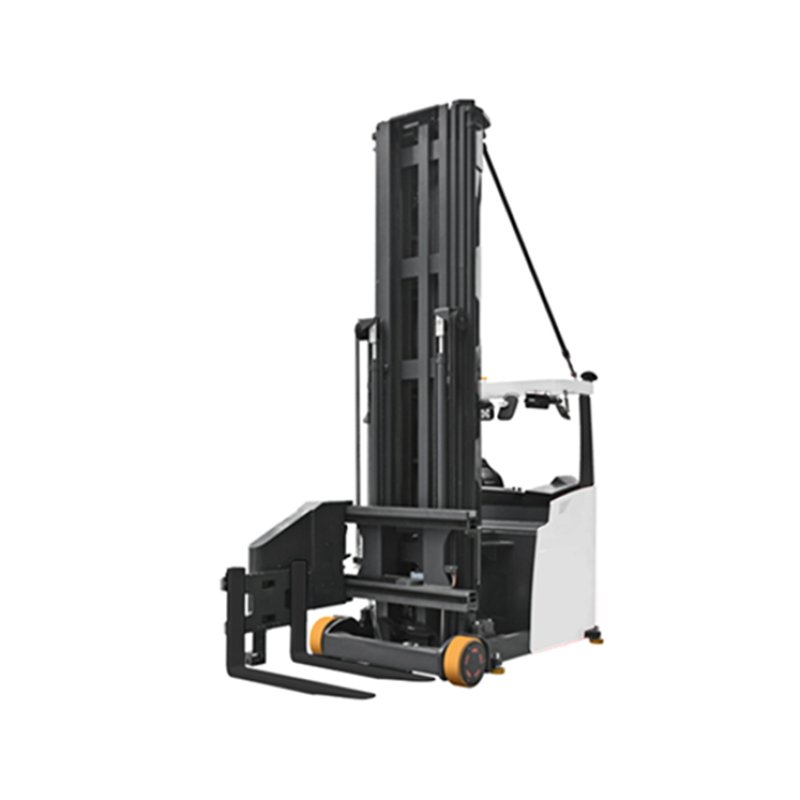

FVseries Forklift VNA AMR

LOGIANT

LCS Solution

Product Model: ANR-FV16、ANR-FV20

High-level storage and intensive storage of pallets/carriers.

Narrow aisle width of 1.6m, bidirectional,

The maximum lift height: is 11m.

Laser SLAM navigation.

Seven safety protections.

High-level storage and intensive storage of pallets/carriers.

Narrow aisle width of 1.6m, bidirectional,

The maximum lift height: is 11m.

Laser SLAM navigation.

Seven safety protections.

Product Specifications

Model	ANR-FV16	ANR-FV16
AGV Size(mm)	346015803600	346015804265
Lift height(mm)	7500	9000
Safety performance	Anti-collision lidar x3、Around bumper strip
AGV weight(kg)	6000	6500
Rated Load(kg)	1600	1600
Navigation type	Lidar SLAM
Max traveling speed(m/s)	8	8
Load center distance(mm)	600	600
Fork dimension(mm)	1200/125/50	1200/125/50
Fork outer width(mm)	265~765	265~765
Positioning accuracy(mm)	±10	±10
Motion mode	Forward/Backward
Min. turning radius (mm)	2080	2180
Battery type	Lithium battery
Battery volume	48V/450Ah	48V/560Ah
Min. aisle width (mm)	1680	1800
